Introduce:

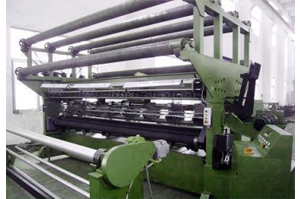

SGE2319-270×8A Raschel warp knitting machine
Product overview:
This product is based on the absorption of advanced technology at home and abroad, after many years of production practice of our company mainly to adapt to the wide range of market products needs to design and manufacture a product. Suitable for the yarn spun from polyethylene, polypropylene and other raw materials, the use of various types of disc or bobbin, the use of roller active let-off way to weave. It has the characteristics of simple operation and high economic efficiency.
main technical parameters
Specification: Oil tank type eccentric connecting rod machine
Type：e2， e6, e7, e8, e9, e12, e14, e16
Effective width: 6858mm
Let off mode: three roller active let off
Maximum winding diameter: 1000mm
Coiling form: friction coiling independent friction coiling independent center coiling
Motor type: Inverter + ordinary motor (7.5KW)
Yarn frame form: with edge or edge bobbin piece type yarn frame
Simple drawing tray yarn holder
Large pan end yarn stand
Note: Width can be customized on request
